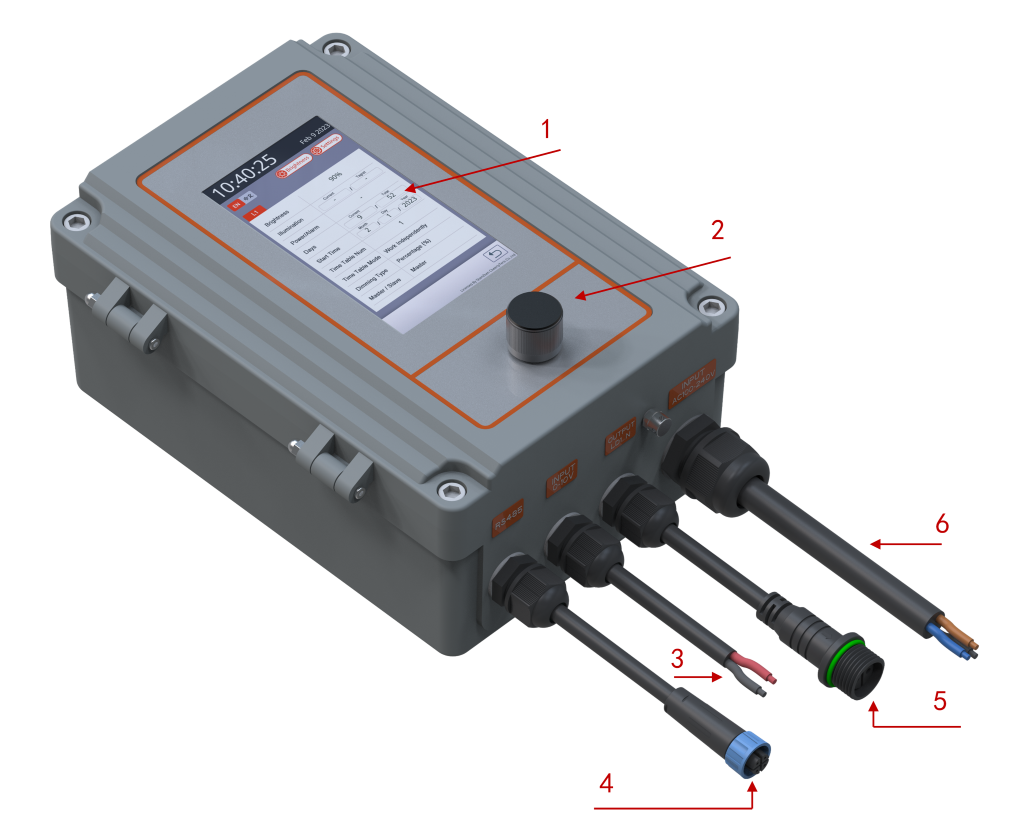

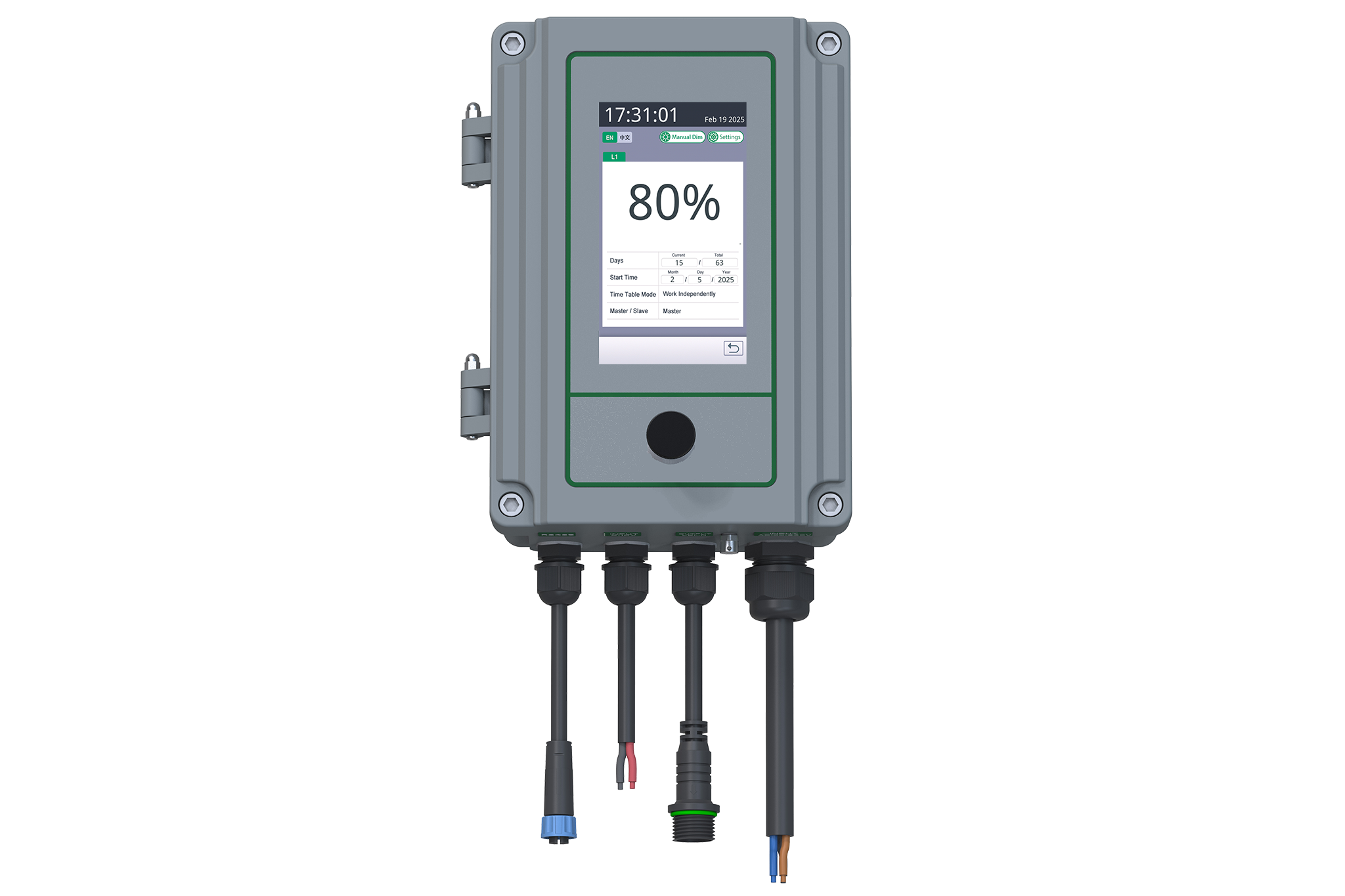

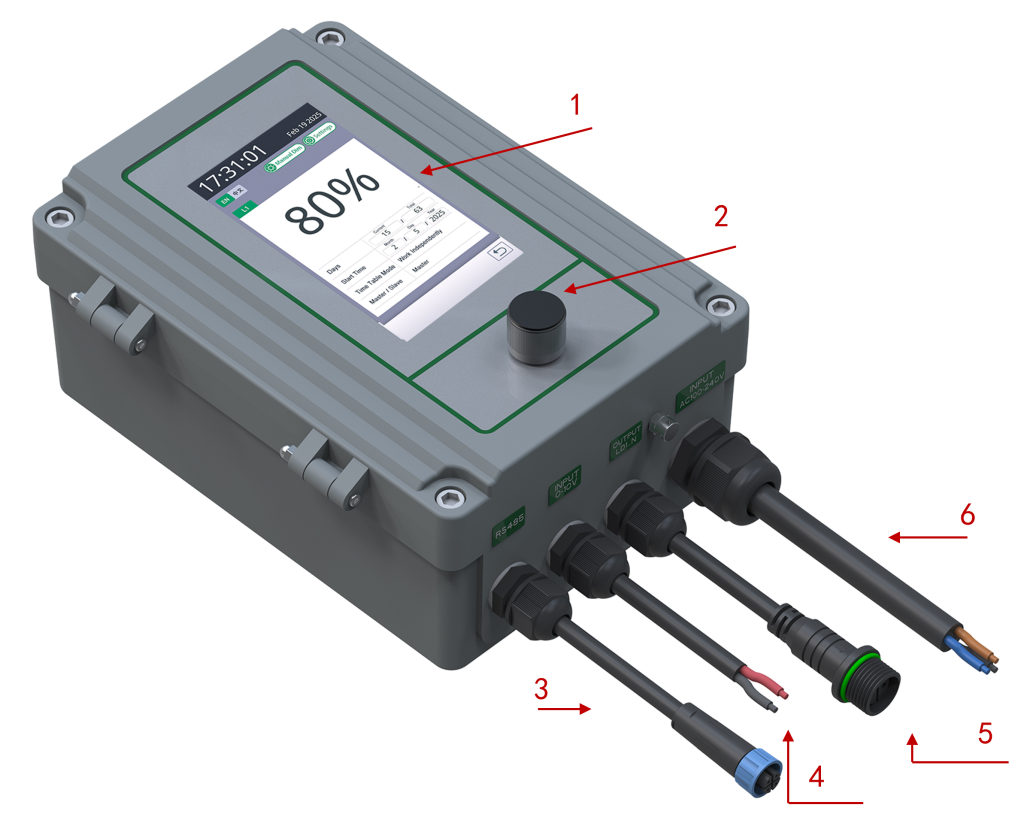

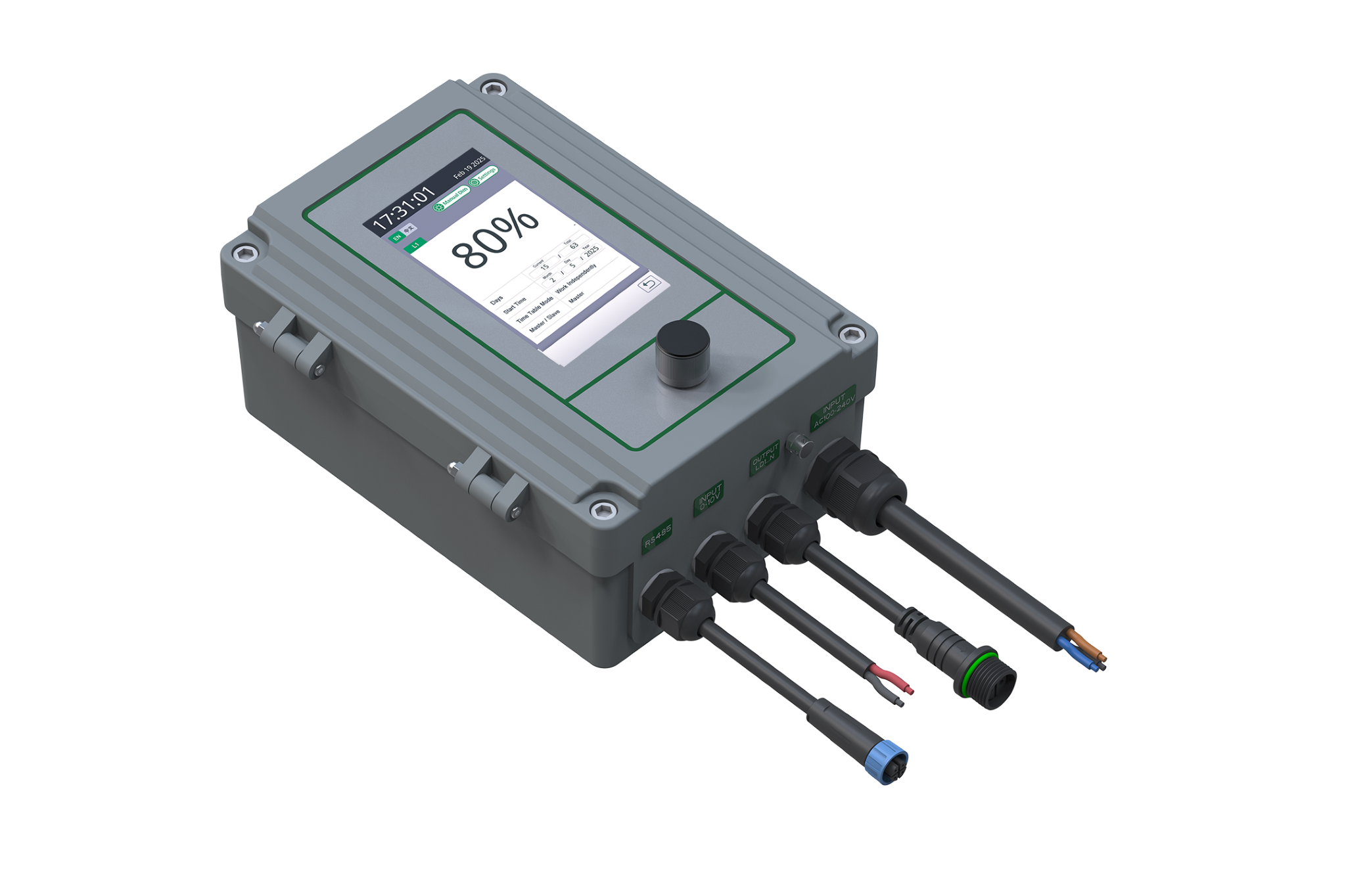

Reverse Phase LED Dimmer for Poultry Lighting System ACD-8A-1D 8A 1760W
One-Channel Reverse Phase Dimming Controller,Max Current8A,Max Load 1760W,5 inch 480 x 854 IPS,dual MOSFET Trailing-edge phase-cut dimming
Description
The ACD-8A-1D Dimming Controller have user ease of use and good compatibility. The IPS capacitive touch screen is used for user configuration and schedule entry; the dual MOSFET Trailling-edge phase-cut dimming is compatible with most LED lamps, and the instantaneous power shock to the lamps and the interference to the power grid are reduced to the best level in the industry.
The ACD-8A-1D dimmer is an One-Channel independent control device.
Features
- The world’s leading DualMos trailing edge phase-cut dimming technology, 0-100% flicker-free throughout
- 0-100% brightness dimming, simulate sunrise and sunset, improve animal welfare
- Built-in breeding schedule, transition time for sunrise and sunset simulation
- Support slave control mode 0-10V control signal, the threshold can be configured
- Support manual dimming,Knob, manual dimming is still soft and smooth
- Support dimming based on light Illumination
- Power failure memory function, continue to run according to the original set schedule after power failure and restart

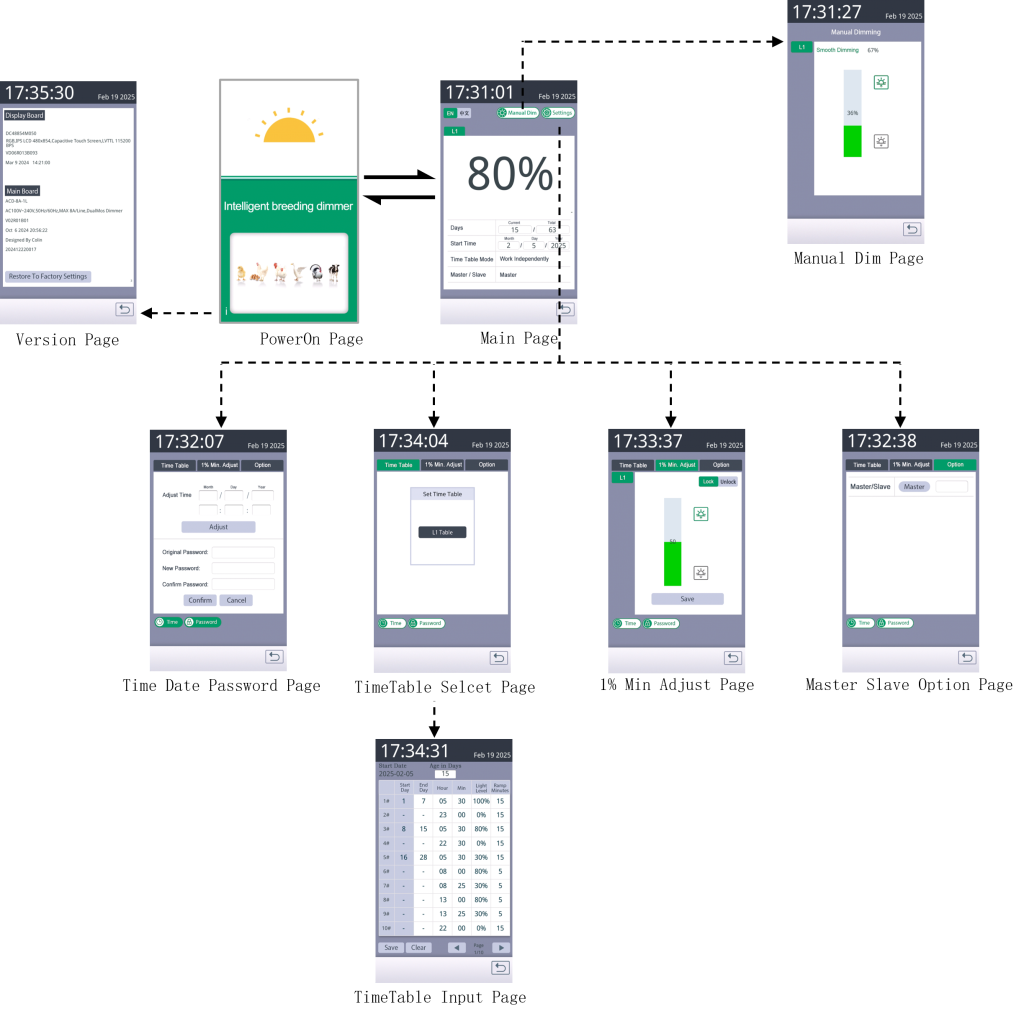

- 5 inch 480 x 854 IPS capacitive touch LCD screen
- Wall-mounted installation
- Waterproof grade IP65
- Five-year warranty
Technical Details
