DC48V 0-10V LED Dimmer for Poultry Lighting System DCD-10V-6D 6*10mA
Six-Channel Dimming Controller,DC48V 0-10V Dimming,6*10mA,600 x 1024 IPS
Introduction
The DCD-10V-6D Dimming Controller is a smart and easy-to-use device designed to control the brightness of LED lights in places like poultry houses and pig houses. It comes with a built-in timetable feature that automatically adjusts the light levels at set times, ensuring the right amount of light for different stages of animal growth. You can also manually change the brightness whenever needed for extra flexibility.
Features
- Built-in Farming Timetable: Includes Ramp Minutes for realistic sunrise and sunset simulations.
- Adjustable 1% output starting point: Fine-tune dimming from as low as 1% up to 7.5V for precise control.
- Manual Dimming: Offers smooth and soft dimming for precise control.
- Power-Off Memory Function: Automatically resumes operation based on the original timetable after a power failure and restart.
- Manual Mode Power-Down Memory: Retains settings even during power interruptions.

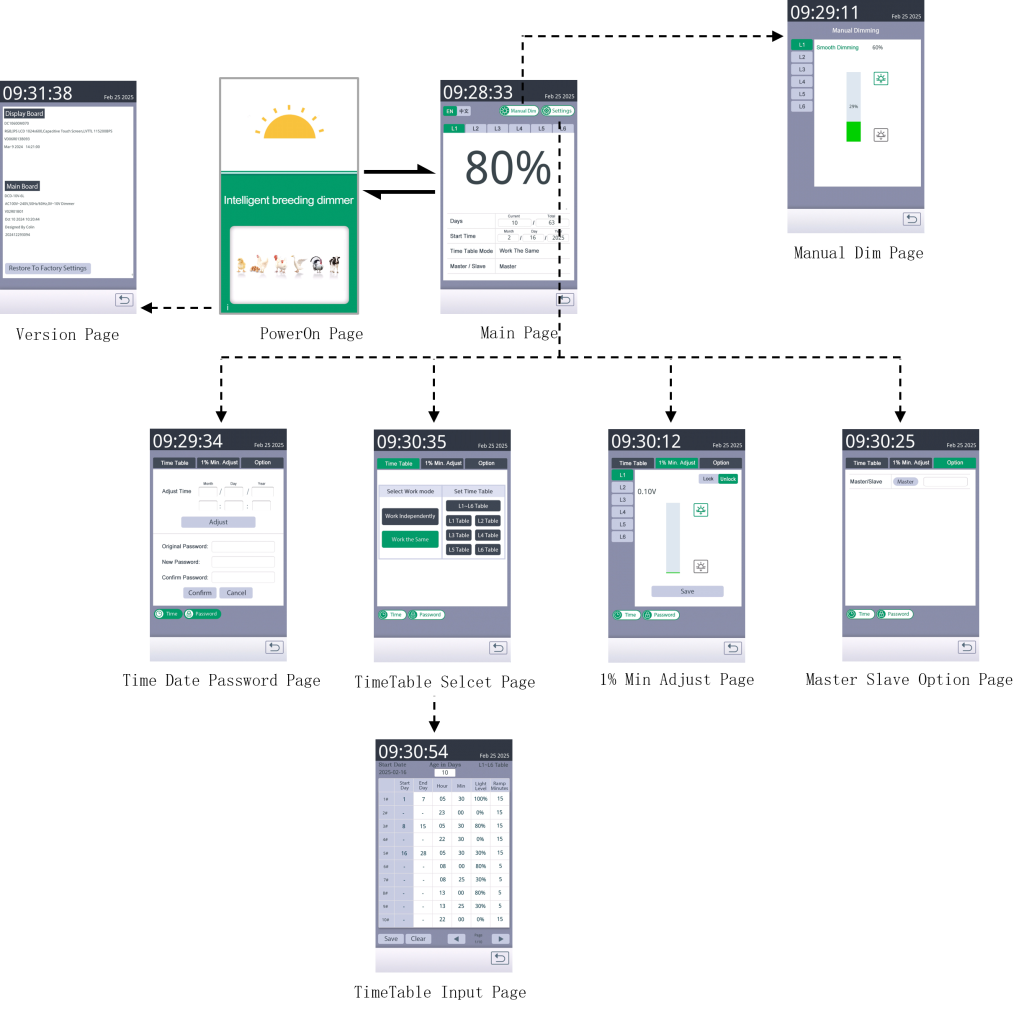

- 7-inch 600×1024 IPS Capacitive Touch LCD Screen: Provides a clear and responsive interface.
- Wall-Mounted Installation: Easy and space-saving setup.
- IP65 Waterproof Rating: Ensures durability and reliability in challenging environments.

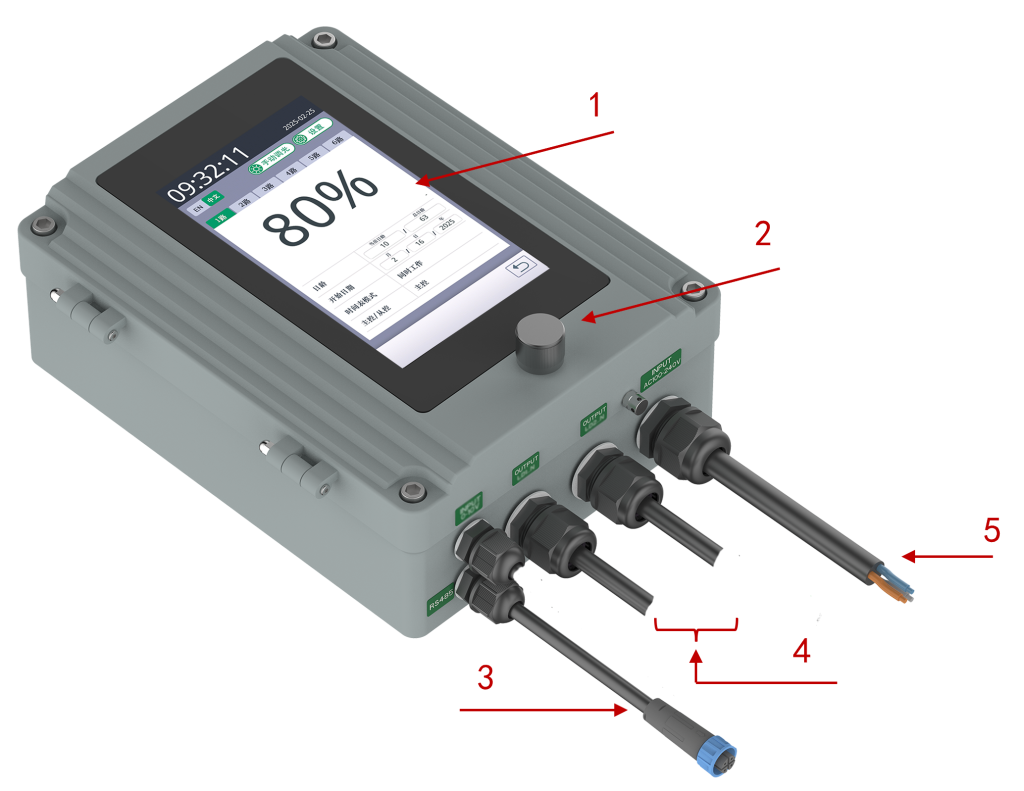

| # | Item | Detailed description |
| 1 | Screen | 600×1024 IPS capacitive touch screen, display the dimming brightness of the dimming controller, working status and parameter configuration. |
| 2 | Knob | It is used in manual mode to easily adjust the brightness of the light.
Press and hold the knob (more than 2 seconds) to switch to manual dimming mode. Rotate clockwise to increase brightness, counterclockwise to decrease brightness. A short press will switch between L1 ~ L6. |
| 3 | RS485 | RS485 interface. You can connect to the upgrade tool to upgrade the firmware through this interface. |
| 4 | 0-10V Oputput | The 0-10V dimming output wires connect to the lighting power supply, with six independent outputs labeled L1 to L6. |
| 5 | Power cord | Enter the power cord and connect to the main power supply circuit. |
| Input voltage | 100V~240VAC 50/60Hz Single-Phase Power Supply |
| Power Consumption | <15W |
| Output Channel | 6 |
| 0-10VDC Analog Output | 11mA |
| Operating temperature range | 0℃ ~50℃ |
| Operating humidity range | ≤85% RH (no condensation) |
| Waterproof and dustproof rating | IP65 (dust and water resistant) |
| Housing Material | Cast aluminum |
| Touch screen | 7-inch IPS capacitive screen (resolution 600×1024) |
| Size | 251*192*90mm |
Scan the QR code to view or download the video tutorial.
Scan the QR code to view or download the electronic user manual.
